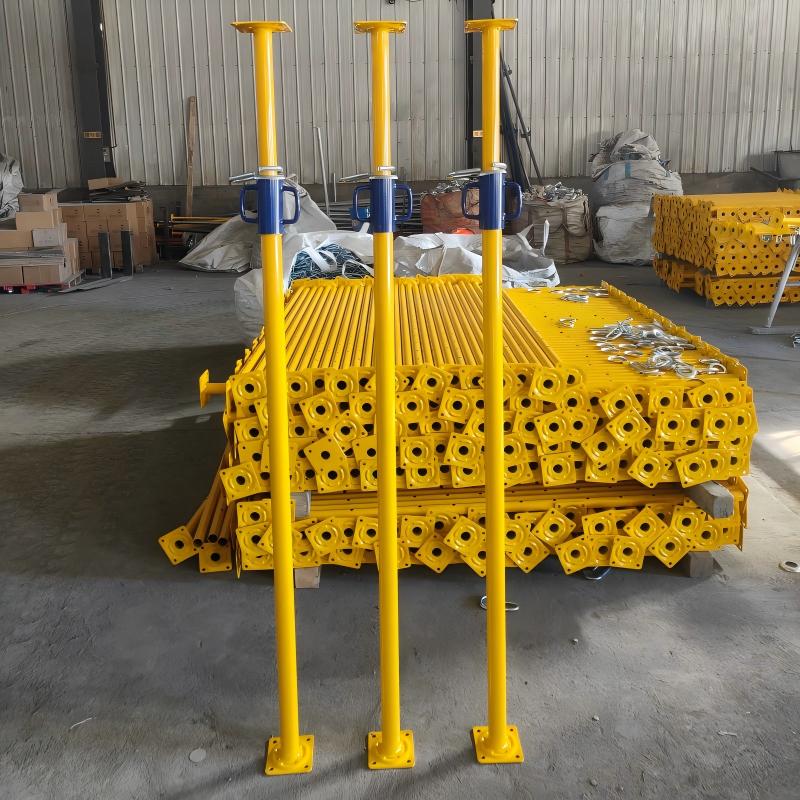

Adjustable steel prop for slab construction, civil construction.
(1)Steel prop is mainly made of bottom plate, outer tube, inner tube, swivel nut,cotter pin, upper plate and the accessories scaffolding tripod, head jack, the structure is simple and flexible.
(2)The structure of steel prop is simple, so it is easy to assemble and disassemble.
(3)Steel prop is adjustable because the inner tube can extend and shrink in the outer tube, so it can be adjusted according to the required height.
(4) The steel prop can be reused. Even though it is out of work, the material can also be recycled.
(5)Steel prop can be adjusted according to the different height of the cnstructions.steel prop ,scaffolding steel props, steel props for construction,adjustable steel props, steel shoring prop scalfolding,ajustable steel prop,steel shoring prop scalfolding,formwork steel prop.
| Specification | Steel Prop |
| Outer/Inner Tube Diameter | 60/48mm;56/48mm;48/40mm |
| Pipe Thickness | 1.5-3.5mm |
| Length | 600-5000mm |
| Standard | ANSI,ASME,ASTM,JIS,DIN,BS,EN |
| Material | Q195;Q235;Q355 |
| Package | In bundles/by single |
| Type | Heavy duty ;Light duty;Italian type;Spanishh Type |
| Application | Slab or Formwork supporting |
| Surface Treatment | Powder coating;Eletro-Galvanized;Pre-Galvanized |
